Casing Wear

Hi Guru,

I just finished my Torque & Drag modelling on my 8.5" hole horizontal section.  I noticed the side force when tripping out exceeded that 2000 lb/31ft and other operations (rotate off/onbottom and tripping in) are within the 2000 lb/31ft (see attached).

Should I be concerned about the casing wear on my 9 5/8"casing.  I am thinking not as it is only tripping out (as long as I drill the section in one or two runs)

Documents uploaded by user:

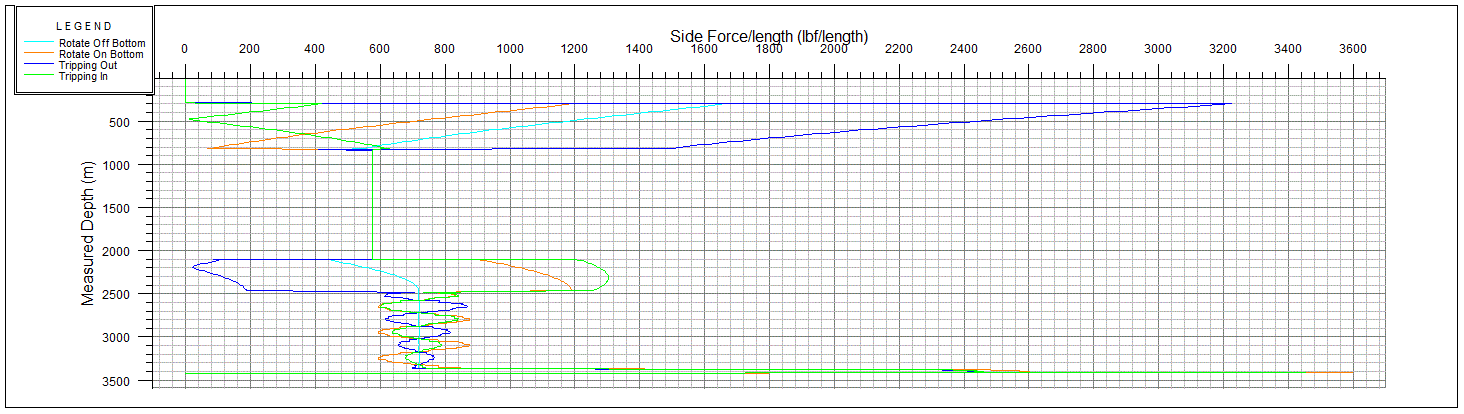

A1 T&D 8.5 Side Force.gif

6 Answer(s)

---
